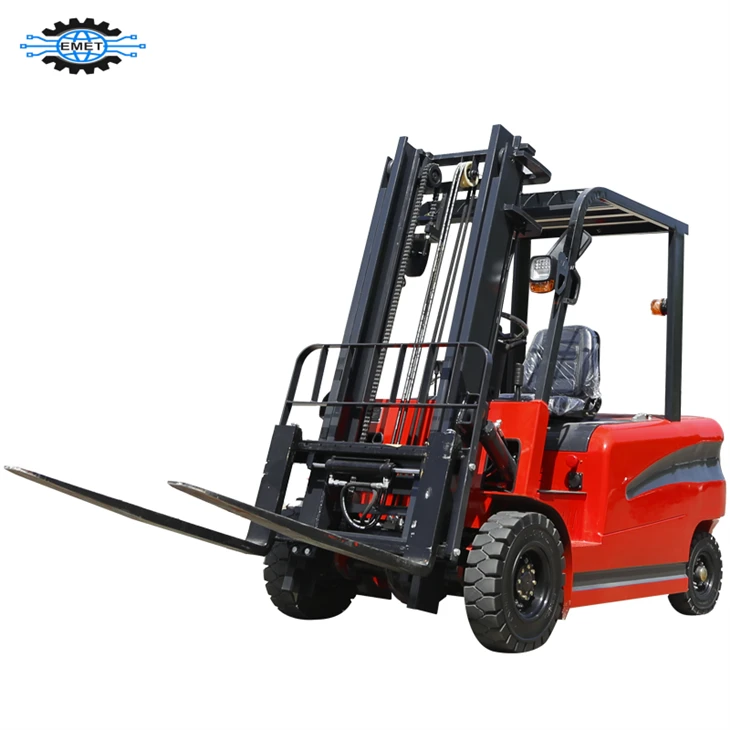

Sit Down Electric Forklift
Basic Functions Overview
This EMETPSD Series Sit Down Electric Forklift adopts a seated design, and the operator needs to control the direction through the steering wheel, and adjust the speed with the accelerator pedal and brake pedal. The lifting and lowering operations are completed through a hydraulic handle, which is located on the right side of the seat for easy one handed operation. Powered by lithium batteries, with no exhaust emissions and lower noise, suitable for indoor enclosed environments; The car body adopts a solid tire design to avoid puncture risks and is suitable for various indoor and outdoor ground environments.
Main Features
- Drive mode: electric drive, powered by lead-acid or lithium batteries, zero emissions, low noise (motor operating noise below 65 decibels);
- Energy consumption: Compared to fuel powered forklifts, it saves 30% -50% energy and has lower maintenance costs;
- Steering method: The rear two wheels of the four-wheel structure are steering wheels, with a turning radius of 1.5-2.5 meters, allowing for flexible operation in narrow spaces;
- Hydraulic System: The fork is lifted and lowered by a double oil cylinder system, ensuring high synchronization;
- The machine is equipped with an automatic proportional deceleration function when turning, making the operation safer and smoother;
- The electrical system features automatic detection functionality, which helps save time on maintenance and repairs;
- The battery features a side detachable design, enhancing work efficiency.
Main Parts
Dedicated Traction Battery
It can be quickly charged, with a range of 6-8 hours
Bold Double Chains
Reinforced chains ensure smoother operation and stronger load-bearing capacity
Intelligent Dashboard
Clear display of various indicators, convenient for driving and maintenance
Main Console
Humanized design, convenient and precise control, and ensuring driving safety
Specifications
|
EMETPSD Series Sit Down Electric Forklift Specifications |
||
|
Technical Data |
Max Load |
1500kg |
|
Length(not including fork) |
2300mm |
|
|
Length(including fork) |
3520mm |
|
|
Width |
1150mm |
|
|
Height |
2150mm |
|
|
Fork length |
1070mm |
|
|
Total weight |
2200kg |
|
|
Max Lifting Height |
5m |
|
|
Machine material |
Integrated stamped steel plate |
|
|
Electric Data |
Walkie motor |
AC 3000W |
|
Controller |
XLD(with parking cooling function) |
|
|
Voltage |
60V |
|
|
Power type |
EV |
|
|
Battery |
Acid lead battery,60Ah/70Ah*5pcs |
|
|
Light and signal |
Lights and Horn |
|
|
Base System |
Drive Bridge |
Cast steel integrated load-bearing bridge |
|
Tire |
Front wheel 650-10 (solid tire), rear wheel 500-8 (solid tire) |
|
|
Turn Bridge |
Steel slab bridge |
|
|
Braking Method |
Oil brake |
|
|
Other Accessories |
Lift Hydro-cylinder |
|
|
Hydraulic lifting motor |
||
|
Gantry Material |
National Standard 12# Steel |
|
|
Turning Method |
Hydraulic steering assistance |
|
|
Charging time |
6-8 Hours |
|
|
Turning radius |
90°Can rotate in place |
|
|
Climbing angle |
15° |
|
Note: All dimensions are manually measured, and a small margin of error is normal. Actual dimensions shall prevail.Colors can be customized.
Multiple Fixtures to meet different work situations
shanghai
-
Shenzhen Mandarin Oriental Hot
why choose EMET Sit Down Electric Forklift?
Each forklift strictly conducts load and climbing tests according to its actual tonnage to ensure that each forklift meets the factory acceptance standard.
Product Video
