Pneumatic Manipulator Arm
It is necessary to choose a hard arm assisted robotic arm in the following situations: when there is torque generated, it is not possible to use a pneumatic balance hoist or a soft cable assisted robotic arm; The center of gravity of the workpiece is away from the arm suspension point, or the workpiece needs to be flipped or tilted; The height of the factory building is limited.
Description
Pneumatic manipulator arm is a labor-saving equipment used for material handling and installation. It utilizes the balance principle of mechanical and pneumatic valves, allowing the operator to push and pull the heavy object accordingly, allowing for balanced movement and positioning in space. When a heavy object forms a floating state during lifting or lowering, the distribution valve ensures zero operating force, but the operating force is affected by the weight of the workpiece.
Pneumatic manipulator arm mainly completes actions such as gripping, reloading, flipping, assembling, lifting, and docking of workpieces. It can be quickly positioned and operated frequently, making it an ideal lifting equipment.
Main Features
- The entire process has floating function, and the machine is capable of workiing without gravity
- Gas cut off protection, ensuring that the workpiece will not fall when suddenly cut off
- Misoperation protection, if the landing is not detected, the workpiece cannot be released
- Warning protection, which can monitor work pressure in real time and reduce risks
- Continuously variable transmission(CVT) function
- Equipped with an air storage tank, it can operate normally within 10 minutes of the machine being cut off
Types

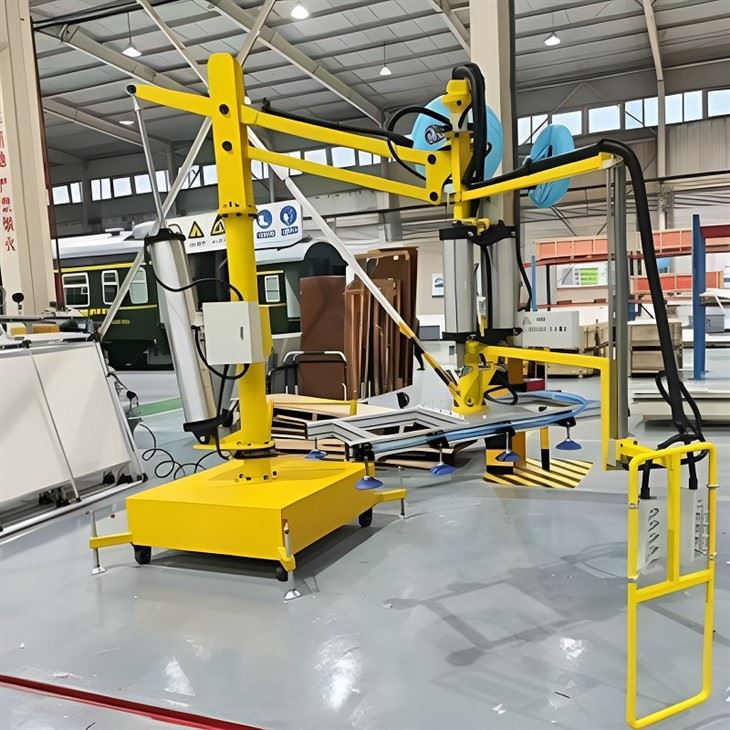

1. Rigid arm pillar type manipulator arm
Mainly suitable for working conditions where the center of gravity is far away from the cantilever hanging point, or when the workpiece needs to be flipped or tilted.
2. Mobile manipulator arm
Mainly suitable for mobile operations, usually installed on a mobile trolley. Flexible mobility and wide applicability.
3. Suspension manipulator arm
Mainly used in conjunction with aluminum alloy tracks, it can achieve large-area rectangular coverage.
Specifications
|
Specifications |
||||||
|
Model |
Max Load (KG) |
Max working radius (mm) |
Min working radius (mm) |
Max Height (mm) |
Effective Lift Stroke (mm) |
Gas Consumption NL/Time |
|
EMET-MA50 |
50 |
3000 |
700 |
3600 |
1400 |
50 |
|
EMET-MA100 |
100 |
3000 |
700 |
3600 |
1400 |
70 |
|
EMET-MA150 |
150 |
2500 |
700 |
3600 |
1400 |
200 |
|
EMET-MA200 |
200 |
2500 |
700 |
3600 |
1400 |
300 |
|
EMET-MA250 |
250 |
2500 |
700 |
3500 |
1400 |
300 |
|
EMET-MA300 |
300 |
2000 |
700 |
3500 |
1400 |
350 |
Note: The above specifications include three types: Pillar type, Mobile type, and Suspension type, but the max weight of mobile type can only reach 150KG.
The fixture is customized non-standard, please contact your exclusive sales representative.
