Guide Rail Lift Platform

Name: China Guide Rail Lift Platform Manufacturers Factory - EMET Machinery & Technology
Brand: EMET
SKU: 292218880

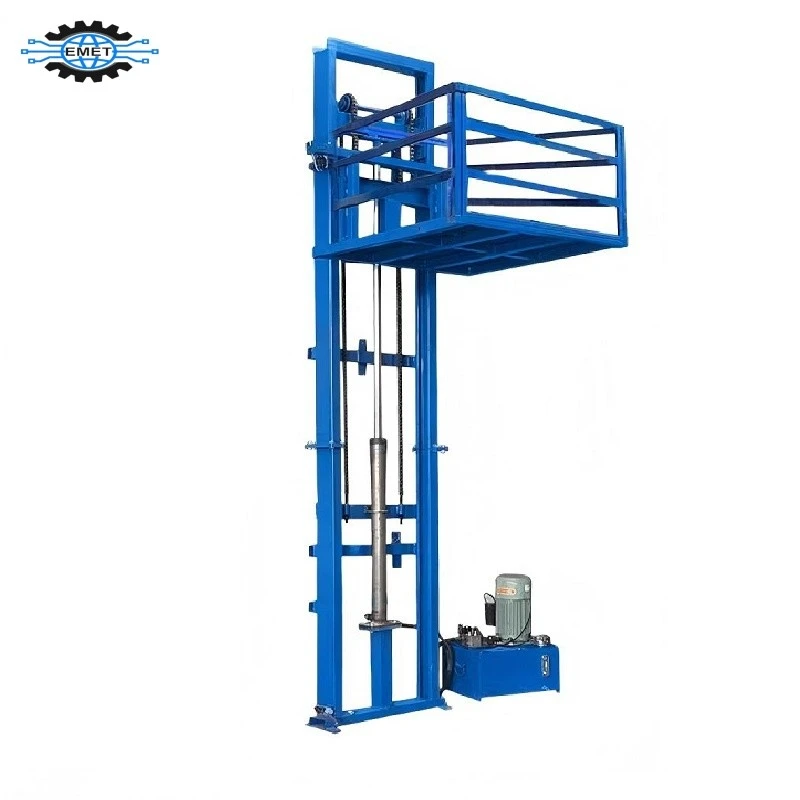

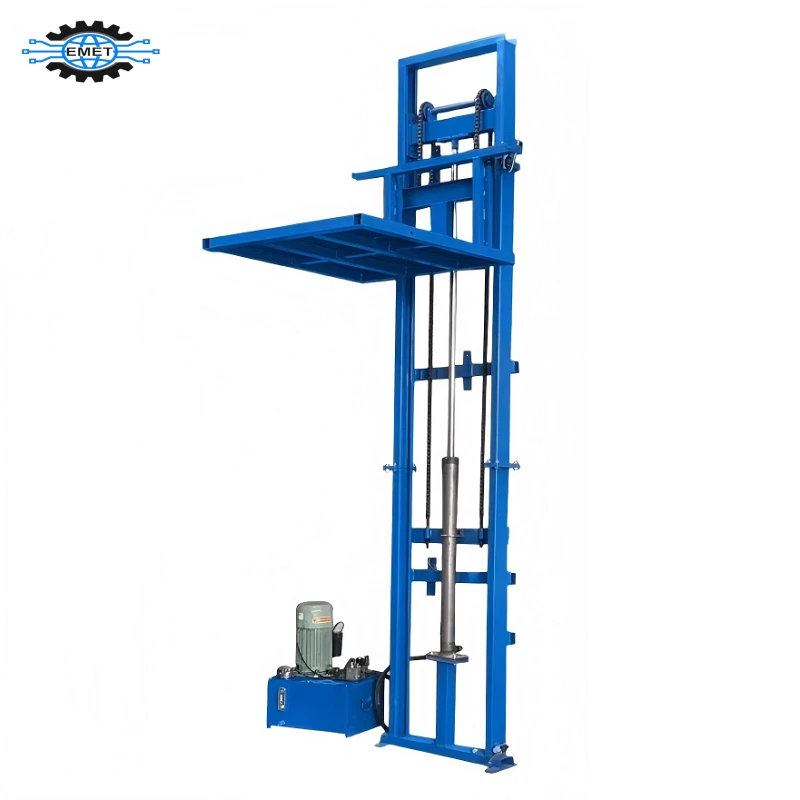

The EMETGR Series Guide Rail Lift Platform is a hydraulic lifting machine used for cargo lifting. It uses hydraulic oil as the main power source and is driven by heavy-duty chains and steel wire ropes to ensure absolute safety of machine operation.

Send Inquiry

Product Introduction

Introduction

The operating principle of the Guide Rail Lift Platform is similar to that of an electric forklift. Specifically, a hydraulic cylinder actuates the chain to raise and lower the platform, while steel cables provide safety support.
This Guide Rail Lift Platform does not require a machine room nor overhead suspension points, offering versatile configurations to meet diverse application needs.
Considering the actual site conditions, the Guide Rail Lift Platform is especially ideal for industrial plants with three or more floors, as well as for underground areas like halls, warehouses, and shopping centers. It is also widely applicable in airports, stations, and other large-scale facilities, providing safe, smooth, and efficient goods transportation services that enhance operational productivity.

Products Description

1. Explosion-proof valve: If the hydraulic oil line bursts, the explosion-proof valve below the hydraulic cylinder closes to safely stop the platform's lift.

2. Anti-fall hydraulic cylinder: When the platform descends faster than the preset safe speed, the anti-fall mechanism activates instantly, ensuring smooth and secure operation.

3. Anti fall oil wire rope: It ensures safety by supporting the platform in the unlikely event of a lifting chain failure.

4. Anti toppling protection system: upper and lower height limiters to prevent toppling.

5. Hydraulic Automatic Pressure Compensation System with Anti-Sinking Function: When the platform hovers at high elevation, the hydraulic automatic pressure compensation system actively maintains platform stability and effectively prevents any sinking, ensuring safe and reliable operation.

6. Overload protection system: If the pressure exceeds the preset limit, the system will promptly issue a warning and immediately halt the platform's lifting operation to ensure safe and reliable performance.

Instructure Features

Main parts

EMET focuses on the detailed manufacturing, safety, and quality of all components.

Lift Remote Control

one button lift and one button emergency stop function

Limit Switch

Limit protection to prevent tipping

Hydraulic Oil Cylinder:

Explosion-proof cylinder, smooth lifting, strong power

Bold Chain

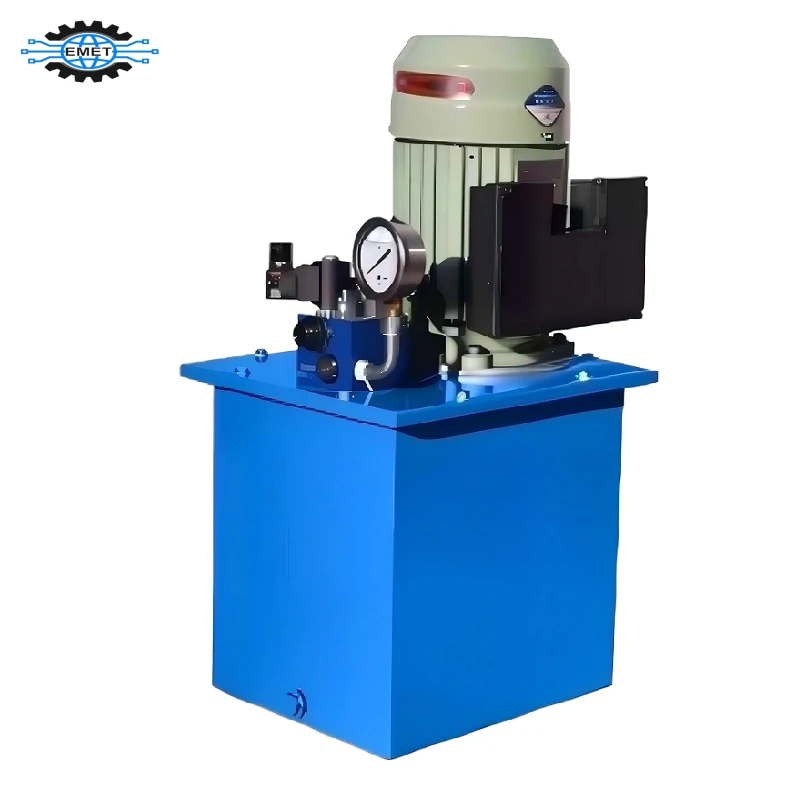

Hydraulic Pump Station

High power and low speed

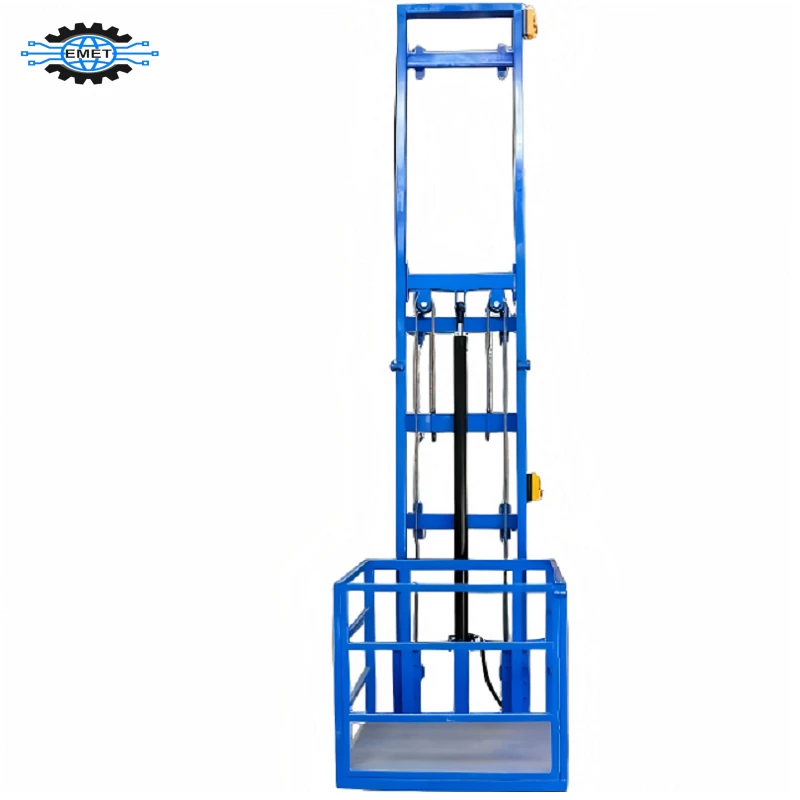

Lifting Platform

Anti slip design, safety fence can be installed and removed

specifications

product-1084-1432

Model	EMETGR03	EMETGR05	EMETGR06	EMETGR08	EMETGR10
Rated Load/KG	1000	1000	1000	1000	1000
Lifting Height/m	3.0	5.0	6.0	8.0	10.0
Cylinder Height/mm	52	63	63	63	63
Hydraulic Pump Station	220V/3.0KW	220V/3.0KW	220V/3.0KW	220V/3.0KW	220V/3.0KW
Platform Dimensions/cm	100*80	100*80	100*80	100*80	100*80
Overall Dimensions	108100400	108100600	108100700	108100800	1081001100
Weight/KG	250	350	400	500	600

Success Case

EMET provides on-site installation services for many domestic enterprises and construction sites, with products sold overseas to 72 countries and installation guidance provided.
