Lifeline Fall Arrester
Application
In high-altitude operations, safety protective equipment is mandatory to ensure safety. Typically, harnesses or half-body safety belts are used. However, in this layer of safety protection, there is only one hook on the safety belt and no buffer. In the event of a fall from a high place, the belt or half-body safety belts can easily cause injury to the lumbar spine and other parts of the body. It is important to consider using equipment with additional safety features to prevent such injuries.
Moreover, using regular seat belts may result in insufficient safety clearance or frequent use of seat belt hooks that affect work efficiency. To address these issues, Lifeline fall arresters can be used.
Lifeline fall arrester, also known as speed differential fall arrester, are devices that provide protection for personnel during high-altitude falls.
Technical Index
|
Specs |
Model |
|||||||||
|
TXS-3 |
TXS-5 |
TXS-7 |
TXS-10 |
TXS-15 |
TXS-20 |
TXS-30 |
TXS-40 |
TXS-50 |
TXS-60 |
|
|
Range(m) |
3 |
5 |
7 |
10 |
15 |
20 |
30 |
40 |
50 |
60 |
|
Locking critical speed(m/s) |
1.0m/s |
|||||||||
|
Wire rope diameter |
4.0mm |
|||||||||
|
Max work load(kg) |
150 |
|||||||||
|
Locking distance |
≤0.2m |
|||||||||
|
Overall failure load(N) |
≥8900 |
|||||||||
|
Service life (times) |
2X104 |
|||||||||
|
Net weight (kg) |
1.8 |
2.0 |
3.2 |
3.5 |
5 |
6.5 |
12.5 |
23 |
24 |
26 |

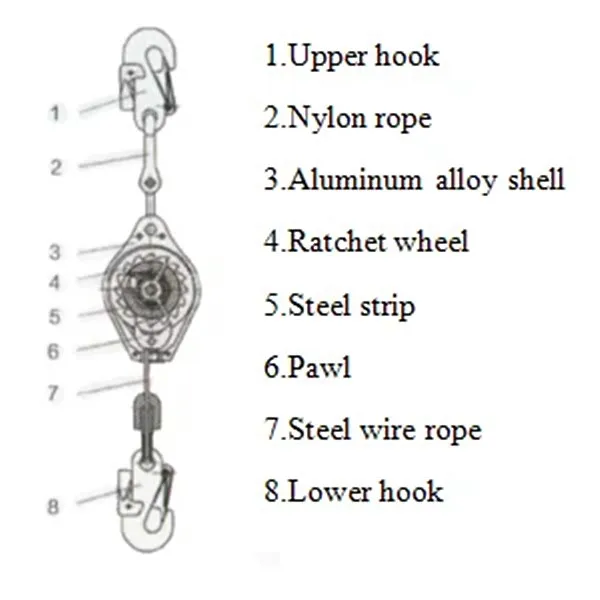

Structure

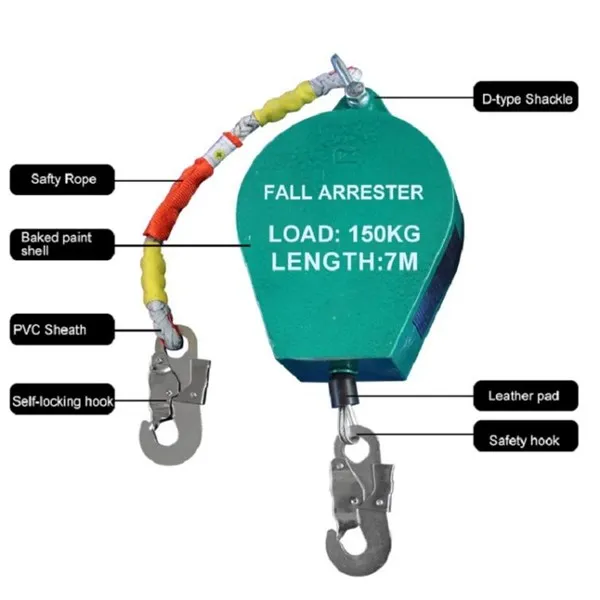

The control system of this product is made of special steel that has undergone a special treatment, making it lightweight, wear-resistant, corrosion-resistant, and impact-resistant. The outer shell, made of aluminum alloy, is also lightweight and resistant to aging.The safety rope is made of aviation-grade steel wire rope.Both the lifting rope and safety belt are flame retardant and can withstand high temperatures up to 200 ℃.They come factory-matched and are ready for immediate use upon purchase.
