Electric Chain Hoist With Hook
Products Advantages
The core function of this EMET-HBH Electric chain hoist with hook is to achieve fixed-point vertical lifting of light and medium-sized heavy objects, with a rated lifting capacity ranging from 0.5T~10T and a lifting height of 3m~10m. It is particularly suitable for fixed workstations that require repetitive work, such as moving engines in car repair workshops, loading and unloading metal components in mold factories, and other scenarios. Compared to electric hoisting winch, its advantages lie in high chain transmission efficiency (about 85% -90%), smooth operation, and the rigid connection between the hook and sprocket can avoid heavy object shaking.
Main Features
1. Shell: The shell is lightweight and sturdy, with high heat dissipation and a fully sealed design, making it suitable for use in environments with poor working conditions.
2. Reverse phase protection device: This special electrical device prevents the control circuit from functioning when the power supply wiring is incorrect.
3. Limit switch: There is a switch device for lifting heavy objects up and down, which automatically stops the motor to prevent the chain from overloading and ensuring smooth operation.
4. Low voltage handle switch: The handle low voltage control device operating at 24V/36V/48V can prevent accidents in the event of switch leakage during operation.
5 Braking device: The brake system adopts a disc type DC electromagnetic field brake, which provides high braking torque, smooth operation, fast response, and low noise levels.
6. Chain: The chain is made of 80-grade manganese steel, which makes it more resilient and durable. It has a stronger load-bearing capacity during operation, ensuring that goods will not fall.
lifting Mode Comparison

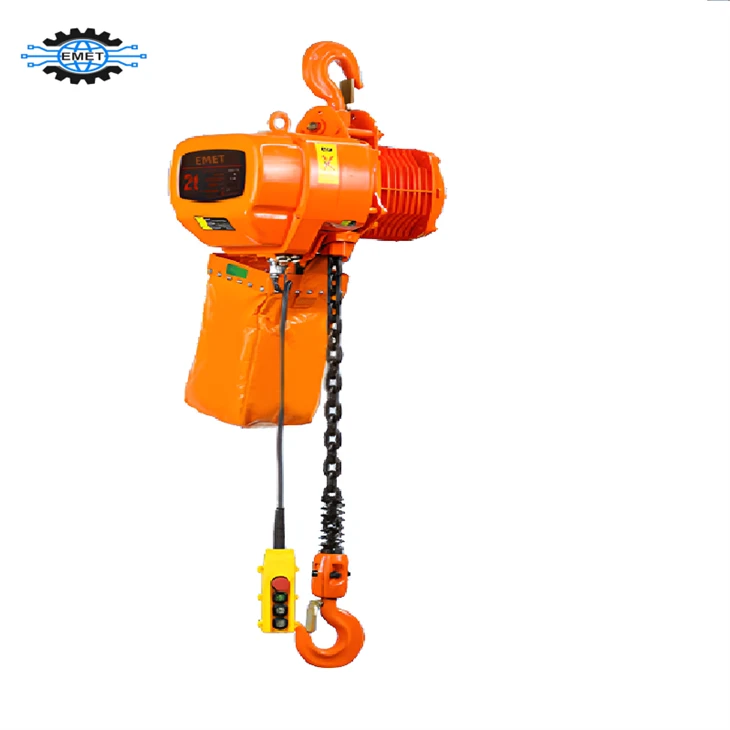

Single Chain
Faster lifting speed
Stronger power

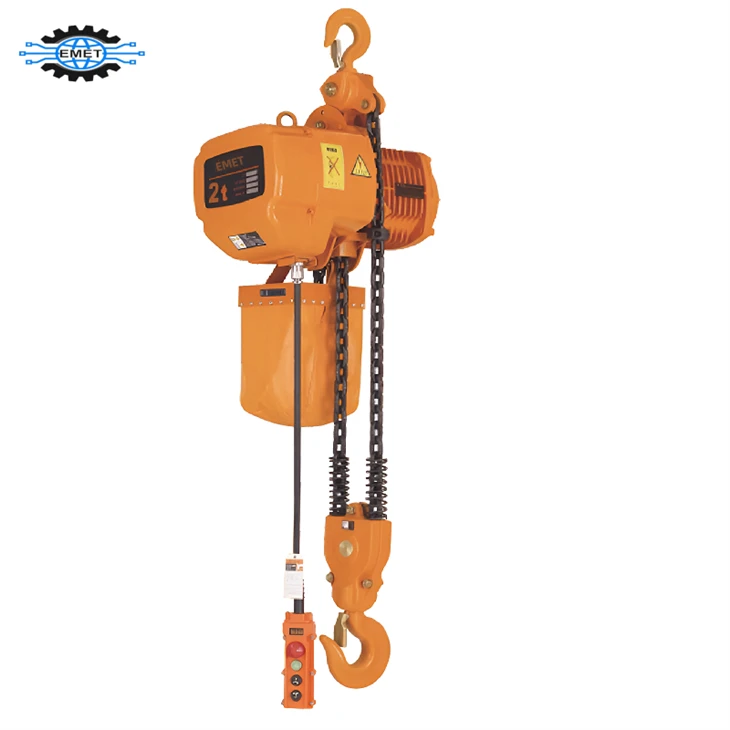

double Chain or Multi Chains
Stronger load capacity
More stable lifting
Technical Parameters
|
Item |
Specification |
|
|
Range of working humidity(%) |
85 or below85 |
|
|
Range of working temperature(℃) |
-20 ~ +40 |
|
|
Protection class |
Hoist |
Ip54 |
|
Push button |
Ip54 |
|
|
Power supply |
3 phase,380V,50/60Hz |
|
|
Noise degree(dB) |
Single speed hoist |
81 |
|
Double speed hoist |
81 |
|
Remarks:
(1) If your working temperature and humidity are out the range of the value in the table, pleaseask your distributor for related data.
(2)Expected operation ways:The hoist is designed to vertically lift in normal atmosphere andworking conditions.
(3) The standard of noise degree is the value measured at 1 meter from the machine under thenormal operation.
| EMET-HBH Series Electric Chain Hoist With Hook Technical Index | ||||||||
|
Type |
Capacity (Ton) |
Lifting Height (M) |
Lifting speed (M/Min) |
Lifting Moter |
||||
|
Power (KW) |
Rotation Speed (R/min) |
Phases |
Voltage (V) |
Frequency (HZ) |
||||
|
HBH0.5-01 |
0.5 |
3/9 |
7.2 |
1.1 |
1440 |
3 |
220-440 |
50/60 |
|
HBH01-02 |
1 |
3/9 |
3.6 |
1.1 |
1440 |
3 |
220-440 |
50/60 |
|
HBH01-01 |
1 |
3/9 |
6.8 |
1.5 |
1440 |
3 |
220-440 |
50/60 |
|
HBH02-02 |
2 |
3/9 |
3.4 |
1.5 |
1440 |
3 |
220-440 |
50/60 |
|
HBH02-01 |
2 |
3/9 |
6.6 |
3.0 |
1440 |
3 |
220-440 |
50/60 |
|
HBH03-03 |
3 |
3/9 |
2.2 |
1.5 |
1440 |
3 |
220--440 |
50/60 |
|
HBH03-02 |
3 |
3/9 |
3.3 |
3.0 |
1440 |
3 |
220-440 |
50/60 |
|
HBH03-01 |
3 |
3/9 |
5.6 |
3.0 |
1440 |
3 |
220-440 |
50/60 |
|
HBH05-02 |
5 |
3/9 |
2.8 |
3.0 |
1440 |
3 |
220-440 |
50/60 |
Unit: mm
| EMET-HBH Series Electric Chain Hoist With Hook Dimensions | ||||||||||||
|
Type |
Capacity |
H |
A |
B |
D |
E |
I |
J |
K |
L |
N |
M |
|
HBH0.5-01 |
0.5 |
550 |
460 |
230 |
240 |
160 |
∅32 |
25 |
∅32 |
25 |
17 |
17 |
|
HBH01-02 |
1 |
670 |
460 |
230 |
240 |
205 |
∅40 |
31 |
∅40 |
24 |
24 |
24 |
|
HBH01-01 |
1 |
600 |
520 |
260 |
310 |
205 |
∅40 |
31 |
∅40 |
31 |
24 |
24 |
|
HBH02-02 |
2 |
750 |
520 |
260 |
310 |
230 |
∅49 |
35 |
∅49 |
35 |
30 |
30 |
|
HBH02-01 |
2 |
800 |
620 |
300 |
440 |
265 |
∅49 |
35 |
∅49 |
35 |
30 |
30 |
|
HBH03-03 |
3 |
1000 |
420 |
260 |
310 |
280 |
∅59 |
42 |
∅59 |
42 |
35 |
35 |
|
HBH03-02 |
3 |
950 |
620 |
300 |
440 |
320 |
∅59 |
42 |
∅59 |
42 |
35 |
35 |
|
HBH03-01 |
3 |
845 |
620 |
300 |
440 |
265 |
∅59 |
42 |
∅59 |
42 |
35 |
35 |
|
HBH05-02 |
5 |
1030 |
620 |
300 |
440 |
325 |
∅60 |
45 |
∅60 |
45 |
43 |
43 |

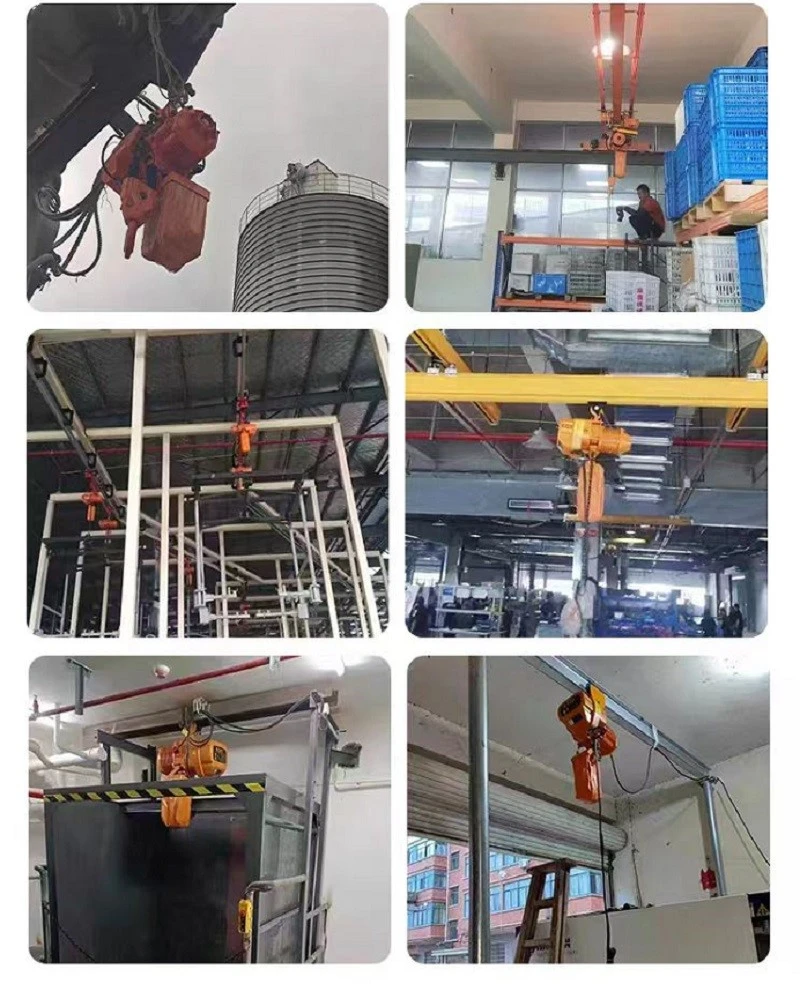

Customer Application Cases
Frequently Asked Questions
EMET will be your most professional expert in handling solutions.
1.Can this electric chain hoist with hook be used in high temperature or high humidity environments?
+
-
In general, it is necessary to strictly follow the environmental conditions calibrated in the parameter table for use (temperature below 40 ℃, humidity below 85%). If the environment exceeds this range, please consult the EMET sales team to confirm its impact.
2. Can the power supply be customized for single-phase 220V, three-phase 220V, and three-phase 480V
+
-
304 stainless steel meets the international requirements of food grade,316 stainless steel is not only food grade or medical grade. However,the use of this medical grade as a production cup will not bring additional benefits to everyone. Why is it called 304 or 316? This is mainly defined according to the material composition. 316 stainless steel is not similar to mineral materials,after use can release some substances to promote human absorption.
3.What is the packaging like? Can EMET arrange transportation to my country?
+
-
The package is fumigation export wooden boxes. EMET has cooperation with multiple shipping companies and can arrange transportation to almost all locations in all countries around the world. Please contact the EMET sales team to confirm the transportation quotation.
4.Can the chain be customized with stainless steel material?
+
-
Sure, please contact EMET to confirm the quotation and other related information.
