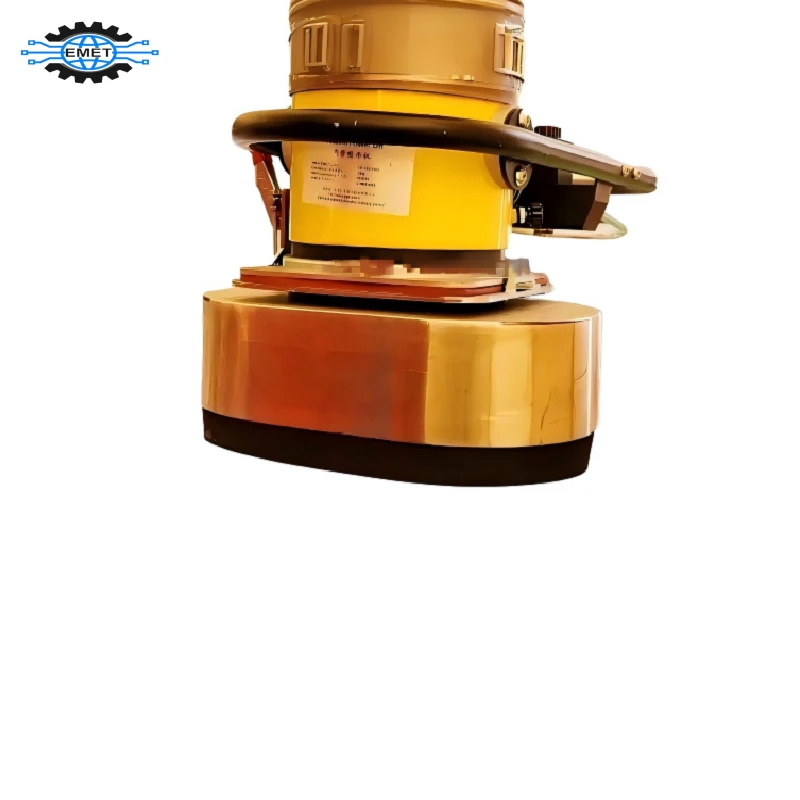

Vacuum Lifter For Bags

why choose EMET-VB Vacuum Lifter



Strong universality, Stable working

Basic functions



This Vacuum Lifter For Bags can fully adapt to mainstream industrial packaging bags such as kraft paper bags, plastic bags, and woven bags with inner lining. It can complete one-stop processes such as rapid suction, smooth handling, precise high-level stacking, and automated feeding of bagged materials. Based on the characteristics of different packaging materials, the equipment adaptation system is mature and complete: plastic bags and kraft paper bags with dense and flat surfaces can achieve millisecond level stable adsorption; A regular woven bag with loose texture and rough surface can be firmly grasped with a special inner film to prevent slipping, falling off, and bag dropping problems.

EMET can customize exclusive suction cup combinations and complete equipment adaptation solutions for customers based on material specifications, weight, packaging process, and workshop environment, perfectly matching complex production environments such as clean workshops, dusty conditions, explosion-proof scenarios, and high and low temperature workshops.

1

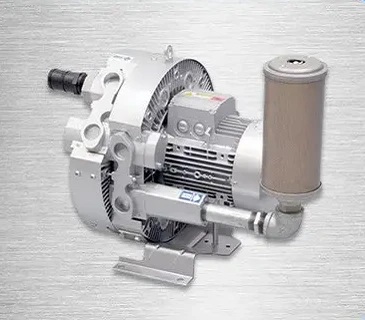

Dry oil-free vacuum blower:air-cooled structure, high speed, stable flow, sufficient negative pressure, real-time compensation for system leakage, no oil pollution throughout the process, suitable for clean production scenarios in food and medicine.

2

High precision vacuum filter: effectively filters dust, impurities, and particulate matter in the vacuum system, eliminates pipeline blockages, comprehensively protects core equipment, and extends the service life of the entire machine.

3

Multi customized vacuum suction cup: Multiple standard suction cups are available for selection and layout based on material material, shape, flatness, and leakage rate. The flexible material fits the bag body without damage.

4

Integrated control handle: With an integrated valve stem design, the functions are integrated and the control is precise. The minimalist operation reduces manual load, making it easy for beginners to get started quickly.

5

Self locking rotary joint: Precision bearings support 360 ° no dead angle rotation, built-in one-way valve, automatic power-off locking vacuum pressure maintenance, completely eliminating the risk of material falling.

6

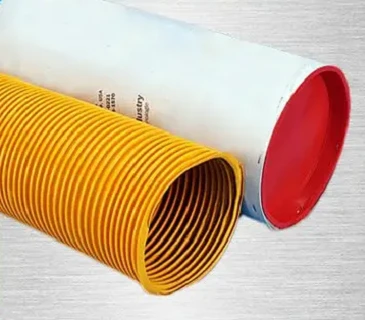

High tenacity telescopic air pipe: dynamically telescopic with vacuum pressure, smooth operation without jamming, anti-aging, wear-resistant, and suitable for high-frequency operation.

7

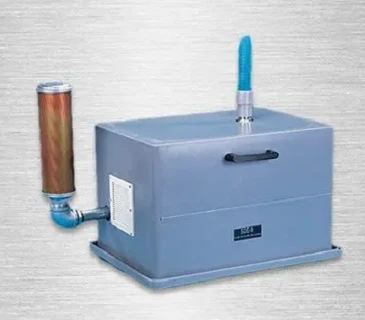

Noise cancelling speaker (optional): It can reduce operating noise by about 10dB, optimize workshop working environment, and meet environmental noise reduction production requirements.

Vacuum Blower

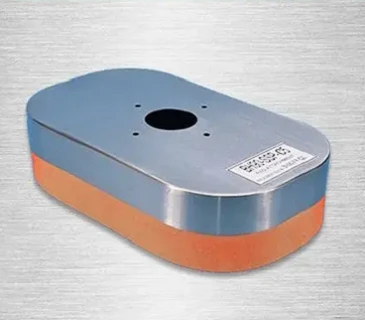

Vacuum Suction Cup

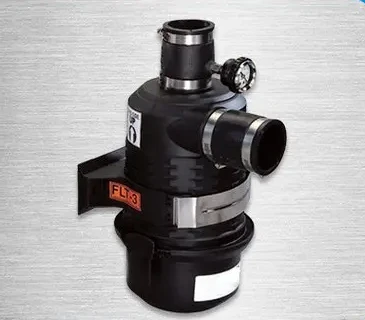

Vacuum Filter

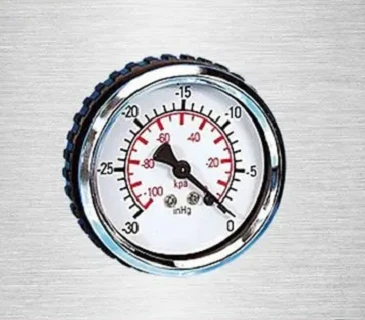

Vacuum Pressure Gauge

Top Rotating Component

Lifting Air Tube

Vacuum Relief Valve

Anti Noise Speaker



1. Power supply specifications: 380V three-phase AC, 50/60HZ universal industrial working conditions, overall power of 3.0KW/4.3KW/5.5KW optional, abundant power, energy-saving and efficient.
2. Rated load: The standard maximum load is 80kg, and conventional bagged materials are fully covered. Overweight materials can be customized with an exclusive adaptation plan based on the load-bearing capacity of the bag body.

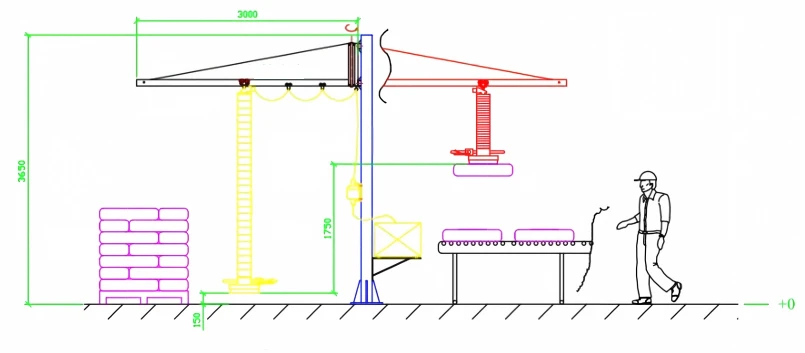

3. Homework itinerary: The natural hanging net length of the trachea is 2500mm/4000mm, with a maximum lifting displacement of 1700mm/2500mm, meeting the needs of high-level stacking and large-span transportation.
4. Performance: Increases speed by 0-1m/s with stepless adjustment, supports custom dynamic balancing mode, and can accurately match the production line operation rhythm.
5. Control mode: Single valve stem integrated manual control, integrating four functions of lifting, lowering, suction, and release, with zero foundation and quick start, and simple operation.
6. Response speed: suction time<0.2 seconds, release time<0.5 seconds, high-speed operation, greatly improving production line flow efficiency.
7. Vacuum performance: Stable working vacuum degree of -300~-400mbar, excellent negative pressure compensation ability, can offset slight leaks, stable adsorption without loosening.
8. Safety standards: The entire machine is equipped with a 2.5-3 times higher safety factor, far exceeding the industry standard, ensuring safe operation.

FAQ





01.Which bags can be adsorbed by this Vacuum Lifter?

Kraft paper bags and plastic bags are easy to adsorb, while general woven bags are easy to adsorb only with an inner film due to their loose material and rough surface. If you are unsure or have any questions, you can send them to EMET for a free suction test.

02.What other parameters are required for on-site customization?

1. The highest and lowest points of improvement; 2. The distance and range of transportation; 3. The height that can be utilized on site; 4. Is it installed on the first floor and can be perforated; 5. Material requirements for the product; Etc..

03.Can this Vacuum Lifter for bags be customized explosion-proof type?

Yes, please contact EMET for relevant information.

04.Does this Vacuum Lifter for bags with international safety standards?

This vacuum lifter is strictly developed and manufactured in accordance with three international industrial safety standards: European CE EN13155:2003, American ASME B30-2006, and German UVV18. The core design indicators are superior to industry standards, and it is equipped with a comprehensive intelligent protection system, which is safe, stable, compliant, and durable

05.Can this Vacuum Lifter for bags be customized?

Yes, the main color codes can be customized for production.
